『 SOLID LINES INDICATE
NORMAL TYPE
DOT
LINES INDICATE NON OZON TYPE |
|
 |
| |
 |
1. Rapid curing within
0.1 to a few seconds at ambient temperature.
2. Pollution free - Elimination of solvent
based materials and clean working environment.
3. Reductions in energy consumption.
4. High quality finish.
5. Reduced waste.
6. Space and time savings, no need to
store whilst drying. |
| |
|
 |
1. Inks
2. Resins
3. Adhesives
4. Sealants
Application can be on various substrates
including wood, paper and board, plastics,
metals, electronic circuit boards and
fiber optic materials.

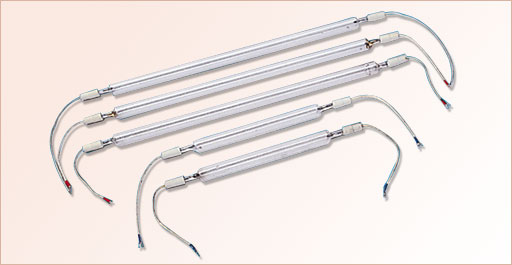

『 Select right capacity of lamp(s) for
the specific application
(60W/cm, 80W/cm, 120W/cm, 160W/cm) |
| |
|
 |
1. Select right size and
series of the lamps.
2. 1 transformer for a lamp
3. 2 condensers for a lamp
4. Control unit
5. Conveyor belt line with cooling fans
and exhaust outlets.
PACITIES ON COMPONENTS & ASSEMBLED
CONDITIONS ARE AFFECTED TO RADIATING
AMOUNTS & DURABLITY.
『 CAUTION : As direct irradiation on
the body causes skin and eyes damage,
build drying
room or furnace not
to leak U.V. rays out and wear the U.V.
protective glasses. |
|
|
